The Singapore Aquaculture Industry — Contributing to Singapore’s Food Security
In Singapore, local food fish farms produce around 10 percent of Singapore’s consumption of food fish. As Singapore envisions production of 30 percent of Singapore’s nutritional needs locally by 2030, Singapore’s aquaculture industry needs to transform and adopt technology to raise productivity, strengthen climate resilience and overcome Singapore’s resource constraints. Some farms have already developed innovations such as floating closed containment farming systems and adopted Internet-of-Things (IoT) solutions. There is also an increasingly vibrant aquaculture R&D ecosystem that works closely with the industry to develop solutions and address technology gaps in the sector. In solving its own challenges, Singapore has the potential to become a leader in tropical aquaculture technology and develop innovations that can benefit the world.
FIGURE 1. Overview of designated farming sites and commonly farmed species in Singapore.
Overview of Singapore’s Aquaculture Industry
Aquaculture in Singapore can be categorized as land-based and sea-based. In 2019, Singapore produced about 4,700 t of foodfish from its 122 licensed foodfish farms. This constitutes around 10 percent of its annual total consumption of live and chilled food fish.
There are 110 sea-based farms in coastal and southern waters that contribute around 85 percent of local foodfish production (Fig. 1). Coastal farms are found within designated farming sites located along the Straits of Johor. Most coastal farms occupy farming sites that are about 0.5 to 1-ha in size. Coastal farming sites are generally sheltered and shallow at about 5-9 m deep, with some sites having slightly deeper waters of about 10-15 m deep. Most of the coastal farms practice traditional open net-cage culture and are made of wooden frame structures floated by 200-L HDPE drums (Fig. 2).
FIGURE 2. A typical coastal open net cage farm.
At the West Johor Straits, off Lim Chu Kang, coastal farms culture mainly milkfish Chanos chanos, grey mullet Mugil cephalus and marine tilapia Oreochromis spp. as these species are able to tolerate the occasional low dissolved oxygen conditions found in the area. At the East Johor Straits, coastal farms are located in the waters off Seletar, Pasir Ris, Pulau Ubin and Pulau Tekong. These farms culture a mix of higher-value marine species such as Asian seabass Lates calcarifer, greasy grouper Epinephelus coioides, hybrid grouper E. fuscoguttatus x E. lanceolatus, crimson red snapper Lutjanus erythropterus, short-fin pompano Trachinotus blochii and four-finger threadfin Eleutheronema tetradactylum.
There are also fish farming sites in the southern waters of Singapore. Compared to coastal farming sites, these sites have relatively deeper waters at about 15-30 m deep, and the sites remain relatively sheltered. Barramundi Asia is Singapore’s only farm in the southern waters. It cultures Asian seabass, also known as barramundi, using Norwegian open cage technology (Fig. 3a). The farm also has a land-based nursery on Pulau Semakau that employs recirculating aquaculture systems (Fig. 3b).

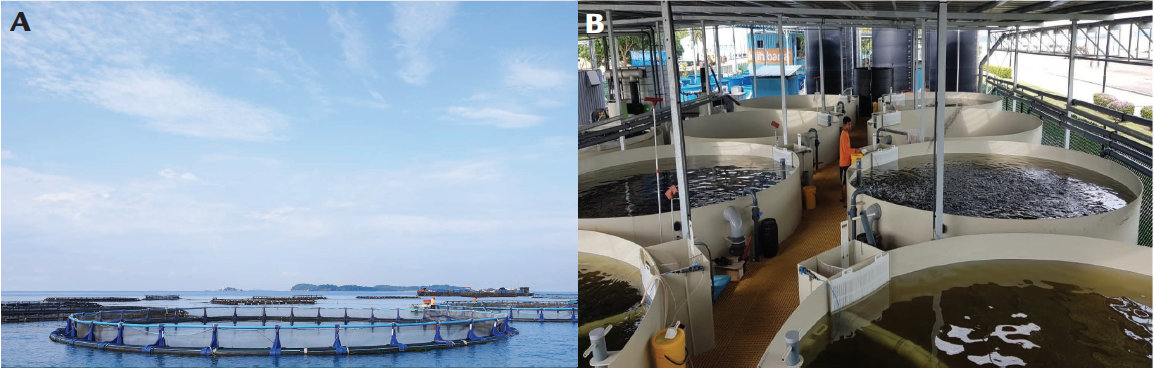

FIGURE 3. Farming in southern waters of Singapore. (A) HDPE cages operated by Barramundi Asia. (B) Land-based RAS nursery on Pulau Semakau. Photos: Barramundi Asia.

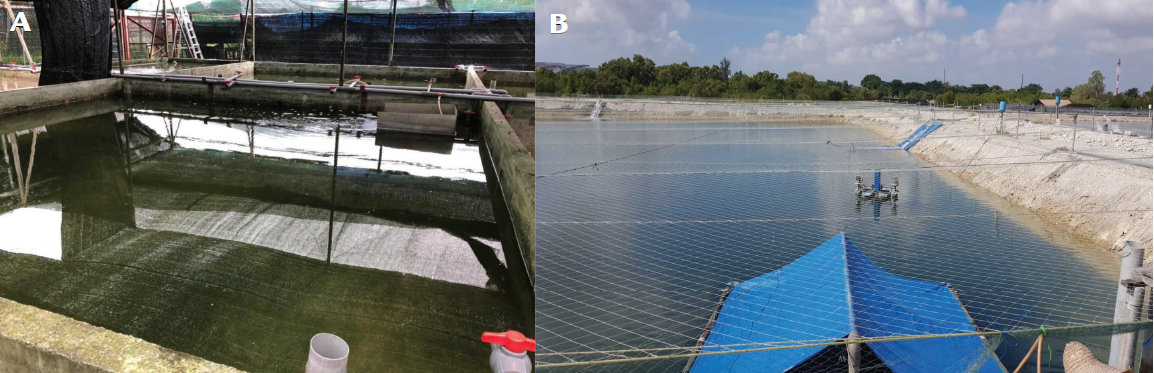

FIGURE 4. Land-based farms in Singapore: (A) Tank-based and (B) open pond culture methods.
There are 12 land-based food fish farms that contribute the remaining 15 percent of local production. These farms, located in Lim Chu Kang and Murai, generally culture freshwater species such as tilapia, marble goby Oxyeleotris marmorata and snakehead Channa spp. These farms practise a variety of culture methods, from open pond culture to recirculating aquaculture systems, and more recently, multi-tier vertical farms (Fig. 4). There are also a few land-based hatcheries producing marine fish fry and fingerlings of species such as short-fin pompano, red snapper and Asian seabass.
Besides finfish species, coastal farms in Singapore also culture crustaceans and molluscs, such as spiny lobsters Palinurus polyphagus, shrimps Litopenaeus vannamei, mud crabs Scylla serrata, green-lipped mussels Perna viridis and oysters Crassostrea gigas. Shrimps and mud crabs are also produced by land-based farms using recirculating aquaculture systems.
“30 by 30” Vision
As a city-state that imports more than 90 percent of its food, Singapore is vulnerable to external shocks and global trends that impact food supply and safety around the world. To strengthen food security, Singapore is pursuing three broad strategies, also known as the three food baskets. These are “Diversify Import Sources,” “Grow Local” and “Grow Overseas.” For “Grow Local,” Singapore has a “30 by 30” vision, that is, to produce 30 percent of Singapore’s nutritional needs locally by 2030. To do so, Singapore’s agri-food industry will have to “grow more with less” by adopting innovative solutions, leveraging R&D and employing climate-resilient and sustainable technologies.
Aquaculture is one of the sectors that will contribute to Singapore’s “30 by 30” vision and there are several key challenges that the industry has to overcome. First, as a small country, Singapore has limited resources in terms of land, sea space and manpower. Second, farms have to deal with occasional adverse environmental conditions. Over the last decade, Singapore’s coastal fish farms have experienced two major episodes of harmful algae bloom (HAB) incidents, an oil spill incident resulting from a vessel collision, and occasional low dissolved oxygen conditions at the West Johor Straits (Fig. 5).

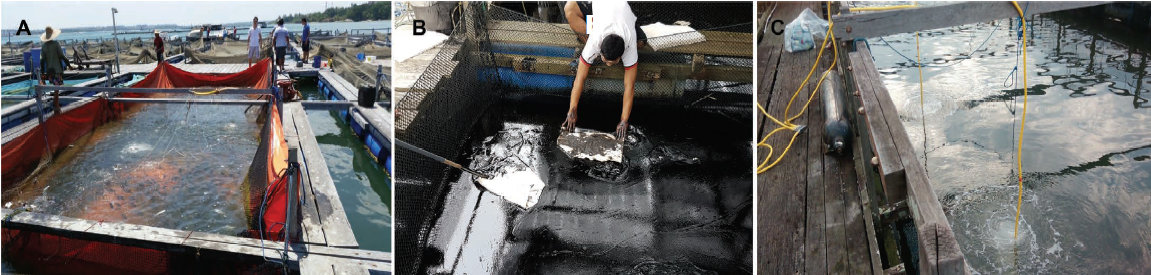

FIGURE 5. Environmental challenges faced by coastal fish farms. (A) The emergency deployment of canvas to protect fish stocks during a plankton bloom incident. (B) Farm worker using absorbent pads to remove oil from a net cage during an oil spill incident. (C) The deployment of oxygen cylinders for aeration during low dissolved oxygen conditions.
Innovations from Singapore Fish Farms
In recent years, several local farms have leveraged technology and innovation to overcome these challenges. In coastal fish farming, The Fish Farmer Pte Ltd have incorporated IoT solutions to deal with the low dissolved oxygen situations that its farms encounter. The farms are equipped with real-time water quality monitoring systems that sends an alert to the farmer when poor water quality conditions are detected. Mitigation measures such as battery-operated air blowers that are charged by solar panels can then be activated to aerate the water (Fig. 6).

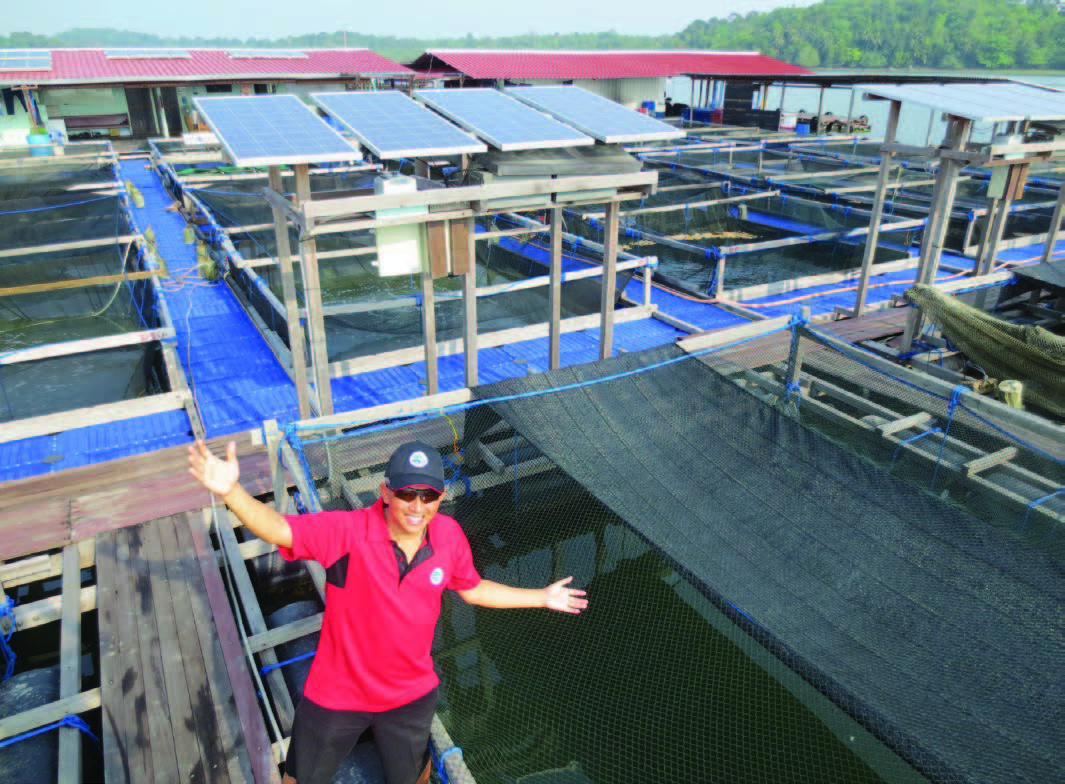

FIGURE 6. Activation of solar-powered air blowers during low dissolved oxygen conditions. Photo: The Fish Farmer Pte Ltd.
Coastal farms have also developed increasingly sophisticated floating closed containment systems that have the potential to transform coastal fish farming by rearing fish in a controlled environment that protects them from adverse conditions (Fig. 7). Singapore Aquaculture Technologies (SAT) was one of the farms that developed a proof-of-concept prototype comprising of 5-m3 capacity tanks floated on wooden platforms. This was developed in response to the then-Agri-food & Veterinary Authority of Singapore’s (AVA) call for proposals for closed containment aquaculture systems following the 2014 and 2015 HAB incidents (Fig. 8a). SAT’s solution was a flow-through system where incoming seawater is improved through treatment with mechanical filtration, UV sterilization and oxygenation before entering the culture tanks. This method allowed up to four times higher stocking densities at 60 kg/m3 compared to open net-cage farming that typically hold 15 kg/m3. More importantly, fish stocks are protected from adverse environment conditions. Improving on the earlier wooden platform-based prototype, SAT subsequently adapted a steel barge that is more robust and stable to support larger 70-m3 capacity tanks for efficient large-scale production (Fig. 8b). It also incorporated mechanisation and sustainability features such as automated fish grader and solar panels to power the farm.

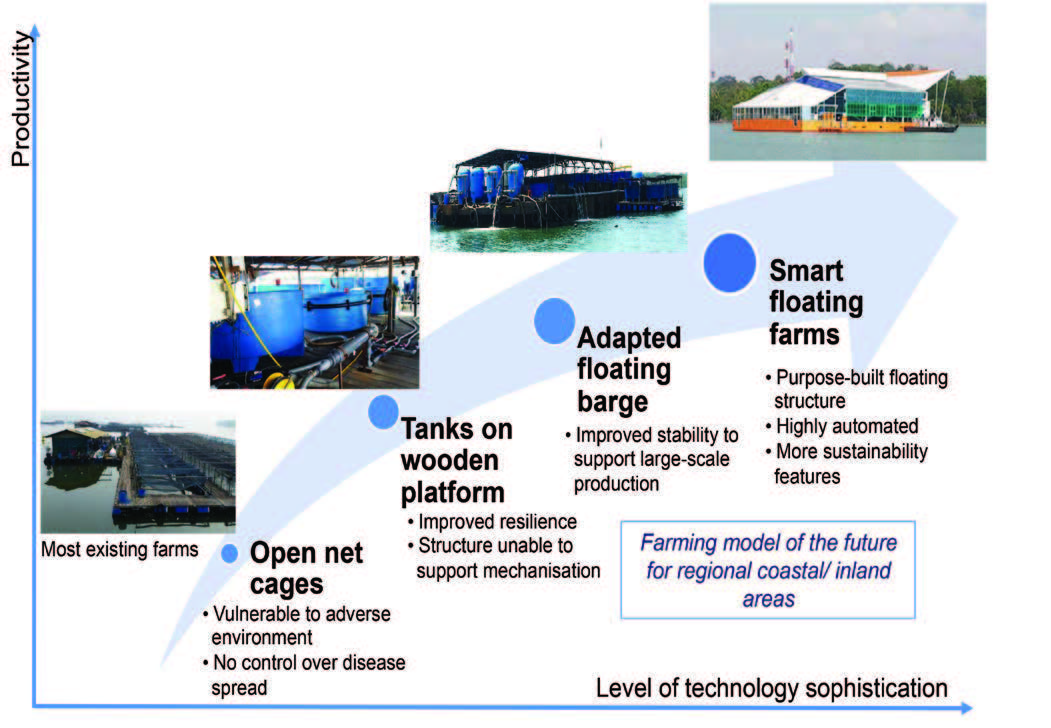

FIGURE 7. The transformation of coastal fish farming in Singapore.
The latest generation of floating closed containment systems in Singapore incorporates features to become highly automated or are purpose-built floating structures. In SAT’s latest, recently launched system, its Smart Floating Fish Farm incorporates self-adjusting control cycles, IoT (Internet of Things) and AI (Artificial Intelligence) to automate processes such as feeding, regulating flow rates of water and oxygen and monitoring of growth and heath of fish (Fig. 8c). Another local farm, the Aquaculture Centre of Excellence (ACE) developed a purpose-built floating closed containment structure, the EcoArk, that is designed to optimise the energy efficiency of the system and allows for solid waste to be removed before water is discharged into the sea (Fig. 9).
On land, Apollo Aquaculture Group (AAG) has developed a multi-tier vertical farming facility using recirculating aquaculture systems (Fig. 10) that allow the farm to culture multiple species such as shrimps, groupers and coral trout while maximising the land productivity of the farm. AAG’s new farm in Singapore will also incorporate sustainable features such as recycling the discharge from the farm to grow aquatic plants to minimize waste from the farm. Another land-based farm, Blue Ocean Aquaculture Technology (BOAT) has moved aquaculture indoors into an industrial building (Fig. 11). BOAT uses Vertical Recirculating Aquaculture System (VRAS) with nanobubble technology to farm freshwater species such as jade perch Scortum barcoo and tilapia within the urban environment.
In southern waters, Barramundi Asia has been making significant inroads towards making Asian seabass the “Salmon of the Tropics.” It has a fully-owned subsidiary, Uvaxx, a fish health company, that develops autogenous vaccines for Asian seabass. Barramundi Asia has also recently acquired Allegro-Aqua, which was set up to commercialize the faster-growing St John’s Seabass, an outcome of a selective breeding program on Asian seabass embarked on by the then-AVA, now Singapore Food Agency (SFA), and Temasek Life Sciences Laboratory in 2003. This merger allows synergies to be reaped by combining the respective strengths in the development of vaccines against Asian seabass diseases and faster growing seabass to improve the farming of this species.
Vibrant R&D Ecosystem
R&D will continue to play a key role to plug technological gaps and Singapore has allocated S$ 144 million towards the funding of a Singapore Food Story R&D program to support the “30 by 30” vision (Singapore Food Agency 2019). One of the areas funded under this program includes tropical aquaculture, with a focus on developing solutions in genetics, nutrition and disease and health management.

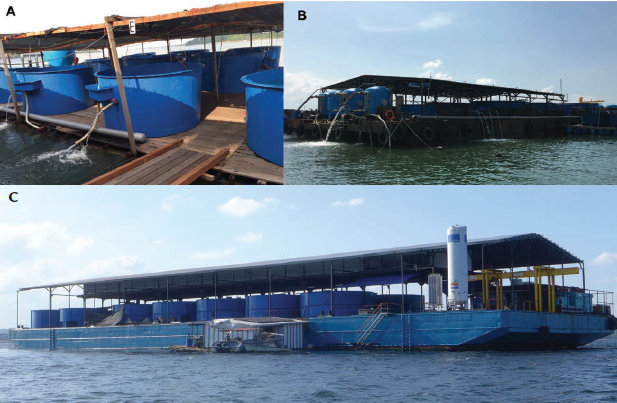

FIGURE 8. The development of a floating, closed-containment aquaculture system by Singapore Aquaculture Technologies Pte Ltd.: (A) Proof-of-concept prototype consisting of tanks floated on wooden platforms, (B) Adapted steel barge to support larger-capacity tanks. (C) Smart Floating Fish Farm which incorporates extensive IoT features to automate processes such as feeding (Photos A and B: Jun Hui Jiang; Photo C: Singapore Aquaculture Technologies Pte Ltd).
Despite Singapore being only a minor aquaculture producer, there is a vibrant aquaculture R&D ecosystem ranging from local polytechnics, research institutes, universities to global animal nutrition and health players such as MSD Animal Health and Adisseo that have sited their R&D facilities in Singapore (Fig. 12). The SFA’s Marine Aquaculture Centre (MAC), located at St John’s Island, also plays an enabling role by providing husbandry-related expertise, shared facilities and ease of access to biological materials for researchers in Singapore to conduct aquaculture R&D and facilitate translation.

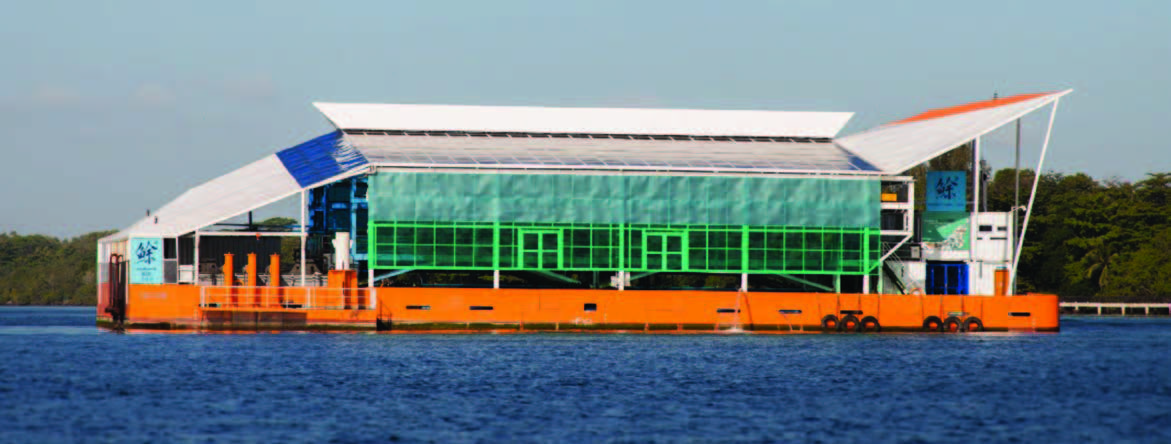

FIGURE 9. EcoArk, a purpose-built floating closed containment structure, developed by Aquaculture Centre of Excellence (ACE). Photo: ACE.
To address the need for greater collaboration among research performers and partnerships with the industry, a consortium comprising seven Institutes of Higher Learning (IHLs) and two agencies (SFA and A*STAR) formed the Aquaculture Innovation Centre (AIC) that is supported by Enterprise Singapore. The AIC is Singapore’s first-of-its-kind Innovation Centre that adopts a consortium approach where members can pool resources and expertise to conduct research, training and services for the aquaculture industry. Several members of the aquaculture industry also serve in the AIC’s Advisory Committee, which provides broad direction for the consortium. Through this approach, our IHLs, agencies and industry will be better able to reap synergies by working together
Singapore: A Leader in Tropical Aquaculture Technology
The challenges faced by local farms are not unique to Singapore. A recent report by the FAO highlighted the impact of climate change on aquaculture that includes production losses due to increased risk of diseases and harmful algal blooms, as well as long-term challenges such as scarcity of wild-caught fingerlings and fishmeal for making aquafeeds (Barange et al. 2018).
This means that there will be significant opportunities for the aquaculture industry to develop innovative solutions that can scale up production in a sustainable way. For example, floating closed-containment systems protect fish from adverse environmental conditions, reduce environmental impact, improve fish health and disease management and increase productivity. With increasing concerns about climate change-related impacts on aquaculture and greater focus on environmental sustainability, such floating closed containment systems have the potential to become the farming model of the future for regional coastal and inland areas.
Singapore’s R&D efforts in aquaculture, such as development of Asian seabass with superior genetics and health and nutrition solutions to improve growth performance, will boost its own local production. Beyond Singapore, the supply of these science-based, knowledge-intensive inputs to overseas farms can also position Singapore as a valued node in the international aquaculture supply chain and contribute to global food security.
FIGURE 10. Multi-tier vertical farming facility developed by Apollo Aquaculture Group (AAG) Photo: AAG.
Through innovation, R&D and a close partnership between the industry, government and IHLs, Singapore has the potential to become a leader in tropical marine aquaculture technology. If Singapore can succeed, it will mean both greater food security for Singapore and more business opportunities for the aquaculture industry.
Lim Huan Sein, Jiang Junhui and Tan Yit Wee are from the Singapore Food Agency, which was formed on 1 April 2019 under the Ministry of the Environment and Water Resources (MEWR), with the mission to ensure and secure a supply of safe food. Lim Huan Sein is the Director of the Aquaculture Department, Urban Food Solutions Division. Jiang Junhui is the Deputy Director of the Aquaculture Department and heads SFA’s Marine Aquaculture Centre. Tan Yit Wee is the Assistant Director of the Industry Development & Partnership Division.
Barange, M., T. Bahri, M.C.M. Beveridge, K.L. Cochrane, S. Funge-Smith and F. Poulain. 2018. Impacts of climate change on fisheries and aquaculture – Synthesis of current knowledge, adaptation and mitigation options FAO Fisheries and Aquaculture Technical Paper 627. Food and Agriculture Organization, Rome, 628 p.
Singapore Food Agency. 2019. Singapore Food Story R&D Programme. www.sfa.gov.sg/food-farming/singapore-food-story/singapore-food-story-r-d-grant-call.
